Revision as of 11:30, 25 January 2012

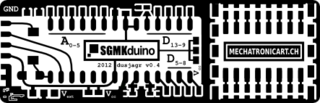

Description
Arduino stand-alone board. Needs an external FTDI usb2serial to reprogram.
Parts List
- 1x Atmega328 (with Arduino bootloader)
- 1x 16mhz quarz
- 2x 50pF capacitor
- 1x 100 nF capacitor
- 1x 10uF capacitor (Elko)
- 1x 10kOhm resistor
optional:
- 1x 7805 Voltage regulator (for powering with 7-15V)
- 1x 1kOhm Resistor
- 1x LED (debug LED on pin13) -> choose your own color :-)
- 1x 6 pin-connector (for connecting the FTDI basic breakout for usb2serial communcication)
Assembly
Pin layout
Bootloader and SPI
Arduino Bootloader (download from arduino.cc) should be burned on the ATMega328. You can burn chips using the ISP (in-sysem-programming) interface of another Arduino :)
When the bootloader is on the ATMega, the SGMKDuino can be programmed using a USB to serial interface (FTDI) for programming: FTDI Basic Breakout - 5V
Programming
PCB-Mask
older versions

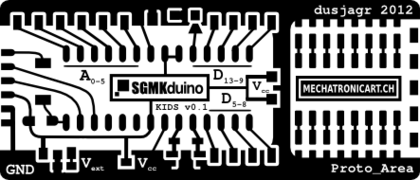

SGMKduino for Kids
PCB-Mask
File:SGMKduino kids v1 mask.pdf
SGMKduinolino with l293
PCB-Mask
File:SGMKduino kids v3 l293 mask.pdf
other clones
DIWO Chip
Made for playaround 2010 - DIWO culture, designed by Bright and dusjagr
Early SGMKduino
sorry about that....

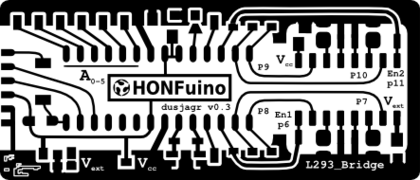

HONFuino
Made for HONF people during dusjagr's residency Jan 2012
Hackteria BioElectronix Arduino-clone
Links
Arduino on breadboard by IPT [1]
Freeduino | uino - [ http://www.freeduino.org/namegen.html Namegen]
