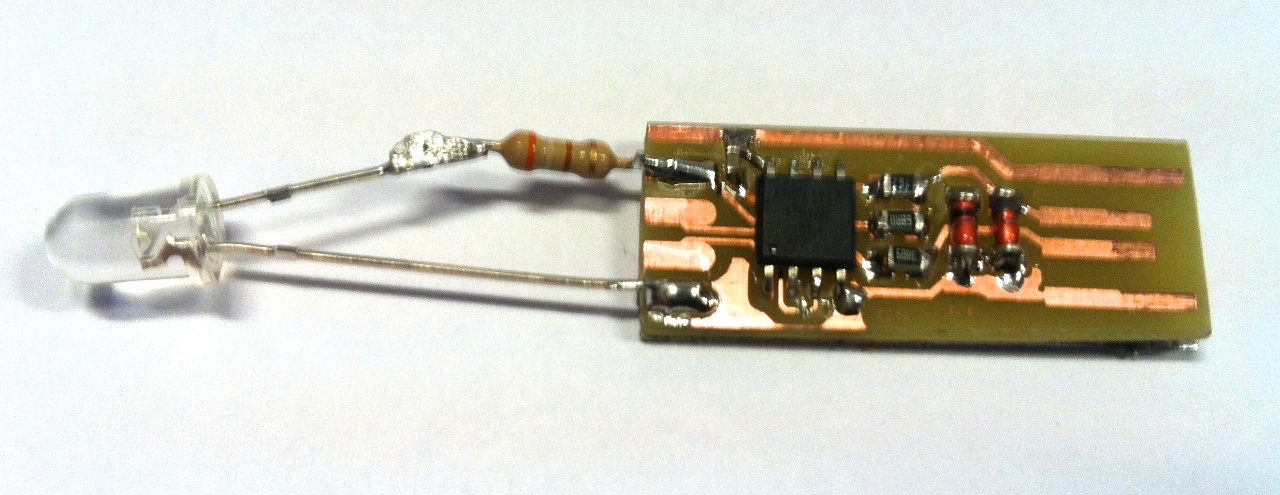

Ridiculously small Arduino with USB interface for bootloading and/or MIDI connection, based on the gnusb / Gnusbuino project.
Really bare-bones, no protection, no FTDI chip, single-sided PCB, no holes. The USB connector is directly etched on the board, so you actually plug in the PCB itself to upload a new sketch to the Arduino.
The only parts needed are:
Parts List
- 1 Atmel Attiny85 microprocessor
- 2 resistors 68 Ohms
- 2 zeners 3.3V
- 1 resistor 1k6
- 1 capacitor 100n
Circuit Schematic
PCB
Full SMD version
Scaled 400%
DIL version
Scaled 400%
