MechArtLab Infrastructure: Difference between revisions

From SGMK-SSAM-WIKI
Jump to navigation Jump to search
(Add Stikka Printa usage & maintenance instructions)
m (Formatting)

(28 intermediate revisions by the same user not shown)
Line 1: Line 1:
[[Category:MechArtLab]]
[[Category:MechArtLab]]


== Electronic Tools ==
== Electronics ==
=== Workspaces ===


[[File:mechartlab_e-tools.JPG|320px]]
There's around 8 electronics workspaces equipped with soldering mats, irons, helping hands, side cutters and illumination


== Hardware Tools ==
[[File:electronics_workspace.png|320px]] [[File:mechartlab_adam.png|320px]]


[[File:mechartlab_h-tools.JPG|320px]]
=== Components ===


== [[Voodoo Chicken Machine]] ==
A reasonable amount of electronics components is available


[[File:VoodooChickenMachine.jpeg|320px]]
<div style="display:flex; gap:1em; align-items:flex-start;">
  <div>
    [[[[File:electronics_components.png|320px|Portrait]]
  </div>
  <div style="display:flex; flex-direction:column; gap:1em;">
    [[File:more_components.png|320px|Top]]
    [[File:bw_oubliette.png|320px|Bottom]]
  </div>
</div>


=== Specs & Documentation ===
Look / ask around in case you're looking for something specific.
* Model: [https://automata.tech/products/hardware/about-eva/ Automata Eva ]
* Documentation: [https://docs.automata.tech/v/4.11.1/ Eva Docs]
* Gripping Tool: [https://schunk.com/us_en/gripping-systems/product/39759-0310960-egp-50-n-n-b/ Schunk EGP 50-N-N-B]


=== Usage ===
=== SMD collection ===
=== Connectivity ===

The WebUI is accessible either through
See a list of all our parts: https://sgmkcloud.ocloud.de/index.php/s/GmFmeziyQkk9cCM
* its own Access Point, SSID "Eva-Playful Lima Dancer"

or
Or for nextcloud users, editable: https://sgmkcloud.ocloud.de/index.php/f/43592
* statically assigned IP on its Ethernet interface

[[File:photo_2025-04-21_14-11-33.jpg|400px|none]]


== Mechanical Workshop ==

The mechanical workshop holds an array of tools and supplies, as well as a pneumatic compressor

[[File:mechanical_workshop.png|320px]] [[File:workshop_reverse.png|320px]]


[[File:workshop_tools.png|320px]] [[File:workshop_supplies.png|320px]]

=== Crime support Dremel ===

To better support criminal activities, the workshop also features a Proxmox dremel device

[[File:proxmox_large.png|320px]] [[File:dremel_crime.png|320px]]

=== Mysterious Machine ===

There's a mysterious machine attached on the far wall of the mechanical workshop

[[File:mysterious_machine.png|400px|none]]


=== Caveats ===
Your mileage may vary.
* collision detection can fire due to vibrations when Eva isn't properly attached to the ground
* make sure to configure the size of the attached tool in Choreograph to prevent collisions
* ensure the READY LED on the Schunk gripper is solid green, otherwise reboot Eva


== 2D Printers ==
== 2D Printers ==
=== HP LaserJet ===
[[File:laserjet_p3015.png|thumb|right|alt=Photo of an HP LaserJet 3015P|Our trusty 2D printing workhorse 🖨️]]
* '''Location''' Next to Retro Computing area
* '''Model''' HP LaserJet 3015P
* '''Purpose''' Printing two-dimensional objects in black & white
* '''URL''' ipp://npi0e1641.local/ (IPP) or socket://npi0e1641.local:9100 (JetDirect)
* '''Toner''' HP 55A (CE255A)


=== Stikka Printa ===
=== Samsung ProXpress ===
==== General usage ====
* '''Location''' DigiGes office
[[File:Stikka Printa.jpg|thumb|right|alt=A black&white label printer|''"Kleben und kleben lassen"'' ❤️]]
* '''Model''' Samsung ProXpress M3325ND
* '''Purpose''' Printing two-dimensional objects in black & white
* '''URL''' Walk over and plug into USB

=== ✨ Stikka Centraal ✨ ===
[[File:Stikka Printa.jpg|thumb|right|alt=A Brother QL550 label printer|✨ Stikka Centraal ✨: ''"Kleben und kleben lassen"'']]
* '''Location''' Table near DigiGes entrance
* '''Location''' Table near DigiGes entrance
* '''Purpose''' Printing sticky labels
* '''Model''' Brother QL570 etc, ESP32
* '''Features''' Black & white, on transparent or non-transparent sticker rolls of 62mm width
* '''Purpose''' Printing sticky labels in black & white
* '''URL''' http://raspi-stikka.init5.ch:8980/ <small>(accessible within "Bitwäscherei-Bau" network)</small>
* '''Features''' Label & sticker printing, generating QR code labels etc
[[File:Stikka Roll.jpg|thumb|right|alt=A black&white label printer with its cover open, showing the handle to change label rolls|Upskirt shot of Stikka Printa 😍]]
* '''Options''' Transparent or non-transparent [white | pink] sticker rolls of 62mm width
* '''URL''' https://stikka-factory.github.io/stikka-mqtt
[[File:Stikka Roll.jpg|thumb|right|alt=A Brother QL550 label printer with its cover open, showing the handle used to change label rolls|Stikka Printa: Upskirt shot 😍]]


==== Maintenance ====
==== Caveats ====
'''To change the sticker roll'''
* The non-transparent paper labels don't come off easily. After peeling off parts of it, you might have to use a solvent or duct tape to completely remove the remains.

==== Changing supplies ====
* Open the cover
* Open the cover
* Pull orange lever up
* Pull orange lever up
Line 51: Line 93:
* Close cover
* Close cover


'''Software'''
==== Debugging ====
* If you feel like adding or improving a feature, the Stikka Printa source code can be found at https://github.com/5shekel/printit
* The software sometimes chokes on large, high-frequency print jobs, and no more stikkas are coming through. In that case, the easiest is to briefly power-cycle the Raspberry controlling Stikka Printa.
* If Stikka Printa isn't accessible on the known URL, the Raspberry controlling it might not be turned on, could have gotten a new IP from DHCP, or init5.ch DNS could be broken. Start by ensuring both the Raspberry and Brother QL550 are turned on, and scanning the BW network range for port 8980 using something like: nmap -sS -p 8980 --open -oG - 10.168.0.0/24. Once recovered, please print a new QR label in case the URL has changed, and update the link in this Wiki 🙏


'''Debugging'''
==== Software ====
* The software sometimes chokes on large, high-frequency print jobs, and no more stikkas are coming through. In that case, the easiest is to briefly remove power from the Raspberry controlling Stikka Printa.
* If you'd like to add or improve a feature, the Stikka Printa source code can be found on [https://github.com/5shekel/printit GitHub]
* If Stikka Printa isn't accessible on the known URL, it might not be turned on, got a new IP from DHCP, or init5.ch DNS could be broken. Start by ensuring it's turned on, and scanning the BW network range for port 8980 using something like: nmap -sS -p 8980 --open -oG - 10.168.0.0/24. Once recovered, please print a new QR label with the updated URL, and update the link in this Wiki 🙏
* To access Stikka Printa via SSH, use l: dusjagr p: clubmate42

<br>
<br>
<br>


== 3D Printers Tools and Instructions ==
== 3D Printers Tools and Instructions ==
Line 99: Line 138:
First time? Ask [http://twitter.com/tamberg @tamberg].
First time? Ask [http://twitter.com/tamberg @tamberg].


== Laser Cutters ==
There's a public MacBook with [https://lightburnsoftware.com/LightBurn LightBurn] preinstalled and configured for our laser cutter armada.
[[File:laser_macbook.png|400px]]
=== Creality Falcon A1 Pro ===
[[File:falcon_exhaust.png|200px|thumb|right]]
==== Specifications ====


== ORTUR Laser Master 2 ==
* 20W blue diode laser
* 2W infrared module for glass and metal, at 455±5 nm wavelength
* Engraving area: 358 × 268mm
* Max. Working Speed: 600mm/s
* Cuts up to: 10mm basswood, 8mm black acrylic or 0.04mm stainless sheet
* For full specs, see [https://www.creality.com/products/falcon-a1-pro-20w vendor website]


[[File:ORTUR_installed.jpg|400px]]
==== General usage ====

[[File:falcon_vali.png|200px|thumb|right]]

* Ensure the compressor in the wood workshop is turned on ☝️
* Place the exhaust hose through the window
* Ensure the devices tubular lock is in the unlocked position
* Ensure power switch is in in the ON position
* Unlock the Emergency Stop by turning the knob
* Connect LightBurn via USB-C and laser away ⚡

==== Known quirks ====


The attached computer has already LightBurn installed, it's the best software to use many different laser machines: https://www.youtube.com/watch?v=YLhbvwq_EDc
* The devices touch display turns off after a few minutes. Just touch it to make it shine again
* Though the laser cutter comes with USB-C ports, using a USB-C to USB-C cable has been problematic
* Using USB-C to USB-A cable with a USB-A-to-USB-C adapter is known to work 🫠


You find drivers and firmware updates here: https://ortur.tech/olm2/
==== Software ====


Hackaday wrote a few articles on mods and improvements, aswell as a nice discussion on open source hardware around the ORTUR company: https://hackaday.com/tag/ortur/
* To operate the Falcon A1 Pro using LightBurn on your own device, see [https://wiki.creality.com/en/laser-engraver/falcon-a1-pro/lightburn-guide their Wiki]
* For improved settings, use Aaron's magic [[:File:Creality Falcon A1 Pro Aa 08-2026.lbzip.zip|Girlen Core config]] ✨


== Parts'n'Stuff / Private Storage ==
=== ORTUR Laser Master 2 ===


[[File:mechartlab_parts.JPG|320px]]
[[File:ORTUR_installed.jpg|400px]]


=== SMD collection ===
The attached computer has already LightBurn installed, it's the best software to use many different laser machines: https://www.youtube.com/watch?v=YLhbvwq_EDc


See a list of all our parts: https://sgmkcloud.ocloud.de/index.php/s/GmFmeziyQkk9cCM
You find drivers and firmware updates here: https://ortur.tech/olm2/


Or for nextcloud users, editable: https://sgmkcloud.ocloud.de/index.php/f/43592
Hackaday wrote a few articles on mods and improvements, aswell as a nice discussion on open source hardware around the ORTUR company: https://hackaday.com/tag/ortur/


[[File:photo_2025-04-21_14-11-33.jpg|400px|none]]
== WetLab ==


== Lab tools / Wetware ==
Use the WetLab for PCB etching and other activities involving chemicals or fluids.


[[File:mechartlab_lab-tools.jpg|320px]]
[[File:wetlab.png|320px]]


=== [[PCB Etching]] ===
=== [[PCB Etching]] ===
Line 147: Line 216:
== Library ==
== Library ==


There's a [http://www.librarything.de/catalog/SGMK Library] in the OpenLab. Librarything.de login is 'SGMK' combined with our beloved password...
=== Book Shelves ===

Bitwäscherei features a couple of bookshelves containing physical books

[[File:bw_bookshelf1.png|320px]] [[File:bw_bookshelf2.png|320px]]

=== Online Services ===

Check out the online [http://www.librarything.de/catalog/SGMK Library]. Login is 'SGMK' combined with our beloved password...


[[File:Solderingiseasy.jpg|320px]]
[[File:Solderingiseasy.jpg|320px]]
Line 163: Line 240:
</tr>
</tr>
</table>
</table>
== Storage ==
The shelves for personal storage boxes are located in the hallway towards the smoking area<small>*</small>
[[File:smoking_hallway.png|320px]]
<small>* Feature restricted MechArtLab Pro users</small>
== PowerPoint Arena ==
Bitwäscherei features a large area dedicated to holding presentations and conventions
[[File:bw_powerpoint_arena.png|400px]]
Use at your own risk.


== Chill out / Coffee ==
== Chill out / Coffee ==


[[File:mechartlab_chillout.jpg|320px]]
There's a lounge with a couple of sofas, as well as a kitchen / bar area

[[File:bw_chillout.png|320px]] [[File:bw_bar.png|320px]]

Maybe clean your mess up after you're done.

== Refreshments ==

Various cold beverages are available in the two public fridges.

[[File:bw_fridge1.png|320px]] [[File:bw_fridge2.png|320px]]

Please use the attached TWINT barcode to pay for your purchases.

== Entertainment ==
=== Toilet DJ ===
Plays random WAV files from SD card upon poweron, with randomness being a bit wonky due to seeding from a floating analog pin.

{| style="border-collapse:collapse; border:0;"
| style="padding:0;" |
[[File:toilet_rave.jpg|320px]]
| style="padding:0;" |
[[File:toiletdj-amp.jpg|320px]]<br />
[[File:toiletdj-ui.jpg|320px]]
|}

Currently features about 100 tunes, feel free to add your own favourites! <small>*Note the file format requirements [[MechArtLab_Infrastructure#System_specs|below]].</small>

==== Amplifier inputs ====
The amplifier is located on top of the flushing tank, and has three inputs:

* '''Tape''' ToiletDJ
* '''Tuner''' Bluetooth dongle
* '''CD''' ''unassigned''

==== System specs ====

* '''Amplifier''' [https://www.radiomuseum.org/r/sintron_dynavox_cs_pa1.html Dynavox CS-PA 1]
* '''Speakers''' [https://hifi-wiki.com/index.php/Grundig_Box_510 Grundig Kugelbox 510]
* '''System''' Arduino Uno, [https://www.adafruit.com/product/94 Adafruit Wave Shield v1.1]
* '''Storage''' 32GB SD card, FAT (MS-DOS) filesystem
* '''WAV format''' Mono, 22kHz, 16-bit sampling rate
* '''Repo''' [https://github.com/gand417/toiletdj GitHub]

==== File conversion ====

To convert a sound file into the required format, you can use tools like ''ffmpeg'' as follows:

''ffmpeg -i input.mp3 -ac 1 -ar 22050 -sample_fmt s16 output.wav''

Latest revision as of 23:12, 18 August 2026


Electronics

Workspaces

There's around 8 electronics workspaces equipped with soldering mats, irons, helping hands, side cutters and illumination

Components

A reasonable amount of electronics components is available

   [[Portrait

   Top
   Bottom

Look / ask around in case you're looking for something specific.

SMD collection

See a list of all our parts: https://sgmkcloud.ocloud.de/index.php/s/GmFmeziyQkk9cCM

Or for nextcloud users, editable: https://sgmkcloud.ocloud.de/index.php/f/43592


Mechanical Workshop

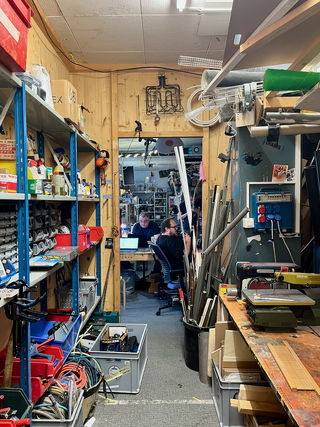

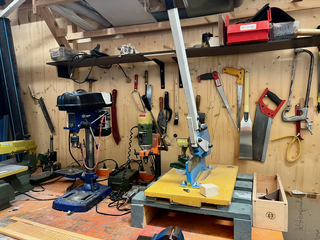

The mechanical workshop holds an array of tools and supplies, as well as a pneumatic compressor


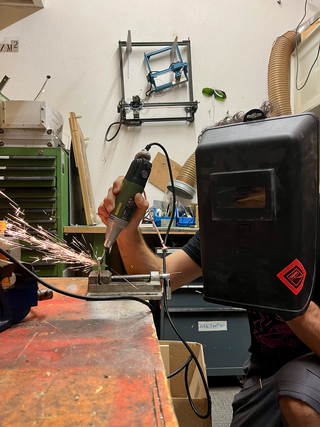

Crime support Dremel

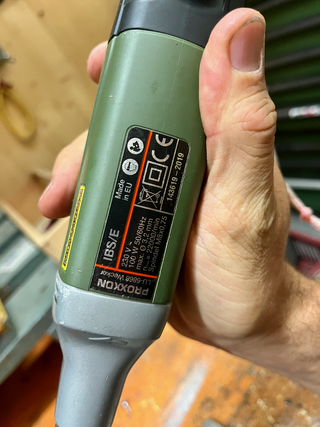

To better support criminal activities, the workshop also features a Proxmox dremel device

Mysterious Machine

There's a mysterious machine attached on the far wall of the mechanical workshop

Your mileage may vary.

2D Printers

HP LaserJet

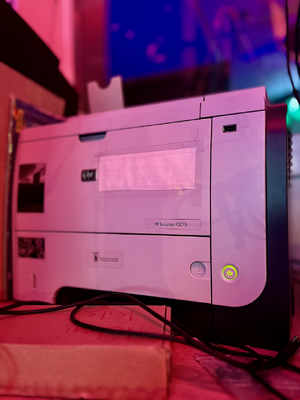

Photo of an HP LaserJet 3015P
Our trusty 2D printing workhorse 🖨️
  • Location Next to Retro Computing area
  • Model HP LaserJet 3015P
  • Purpose Printing two-dimensional objects in black & white
  • URL ipp://npi0e1641.local/ (IPP) or socket://npi0e1641.local:9100 (JetDirect)
  • Toner HP 55A (CE255A)

Samsung ProXpress

  • Location DigiGes office
  • Model Samsung ProXpress M3325ND
  • Purpose Printing two-dimensional objects in black & white
  • URL Walk over and plug into USB

✨ Stikka Centraal ✨

A Brother QL550 label printer
✨ Stikka Centraal ✨: "Kleben und kleben lassen"
  • Location Table near DigiGes entrance
  • Model Brother QL570 etc, ESP32
  • Purpose Printing sticky labels in black & white
  • Features Label & sticker printing, generating QR code labels etc
  • Options Transparent or non-transparent [white | pink] sticker rolls of 62mm width
  • URL https://stikka-factory.github.io/stikka-mqtt
A Brother QL550 label printer with its cover open, showing the handle used to change label rolls
Stikka Printa: Upskirt shot 😍

Caveats

  • The non-transparent paper labels don't come off easily. After peeling off parts of it, you might have to use a solvent or duct tape to completely remove the remains.

Changing supplies

  • Open the cover
  • Pull orange lever up
  • Remove previous roll
  • Insert new roll
  • Feed new roll through front feeder
  • Push orange lever back down
  • Close cover

Debugging

  • The software sometimes chokes on large, high-frequency print jobs, and no more stikkas are coming through. In that case, the easiest is to briefly power-cycle the Raspberry controlling Stikka Printa.
  • If Stikka Printa isn't accessible on the known URL, the Raspberry controlling it might not be turned on, could have gotten a new IP from DHCP, or init5.ch DNS could be broken. Start by ensuring both the Raspberry and Brother QL550 are turned on, and scanning the BW network range for port 8980 using something like: nmap -sS -p 8980 --open -oG - 10.168.0.0/24. Once recovered, please print a new QR label in case the URL has changed, and update the link in this Wiki 🙏

Software

  • If you'd like to add or improve a feature, the Stikka Printa source code can be found on GitHub
  • To access Stikka Printa via SSH, use l: dusjagr p: clubmate42

3D Printers Tools and Instructions

Best to directly connect to OctoPrint: http://octopi.local/ or install Cura on your laptop and use the SD cards reader.

Ender3Ender3 v2MicroDeltaUltimaker


Bed leveling for Ender 3 (& V2)

Check this movie: https://www.youtube.com/watch?v=4JSa_r8xgX8


Other resources

Currently a MicroDelta printer is installed, use the page linked to get started.


Design: Download Sketchup from http://www.sketchup.com/ => Design => Export .STL

Slice: Download Cura from http://software.ultimaker.com/ => Load .STL => Prepare => Write .GCODE to SD card

Print: Insert SD card into Ultimaker => Push, Scroll to Card => Select .GCODE => Push

Share: Upload model and .STL (but not .GCODE) to http://thingiverse.com/

First time? Ask @tamberg.

Laser Cutters

There's a public MacBook with LightBurn preinstalled and configured for our laser cutter armada.

Creality Falcon A1 Pro

Specifications

  • 20W blue diode laser
  • 2W infrared module for glass and metal, at 455±5 nm wavelength
  • Engraving area: 358 × 268mm
  • Max. Working Speed: 600mm/s
  • Cuts up to: 10mm basswood, 8mm black acrylic or 0.04mm stainless sheet
  • For full specs, see vendor website

General usage

  • Ensure the compressor in the wood workshop is turned on ☝️
  • Place the exhaust hose through the window
  • Ensure the devices tubular lock is in the unlocked position
  • Ensure power switch is in in the ON position
  • Unlock the Emergency Stop by turning the knob
  • Connect LightBurn via USB-C and laser away ⚡

Known quirks

  • The devices touch display turns off after a few minutes. Just touch it to make it shine again
  • Though the laser cutter comes with USB-C ports, using a USB-C to USB-C cable has been problematic
  • Using USB-C to USB-A cable with a USB-A-to-USB-C adapter is known to work 🫠

Software

  • To operate the Falcon A1 Pro using LightBurn on your own device, see their Wiki
  • For improved settings, use Aaron's magic Girlen Core config ✨

ORTUR Laser Master 2

The attached computer has already LightBurn installed, it's the best software to use many different laser machines: https://www.youtube.com/watch?v=YLhbvwq_EDc

You find drivers and firmware updates here: https://ortur.tech/olm2/

Hackaday wrote a few articles on mods and improvements, aswell as a nice discussion on open source hardware around the ORTUR company: https://hackaday.com/tag/ortur/

WetLab

Use the WetLab for PCB etching and other activities involving chemicals or fluids.

PCB Etching

Instructions on how to use the PCB etching facility can be found under PCB Etching.

Instructions for Mask design and print for custom PCBs.

Oven for Reflow and PDMS

There is a temperature sensor in the oven connected to an arduino that can be read through serial terminal. At the moment the sensor is mounted at the wrong position and shows around 40° less than the real temperature in the moddle of the oven. more about the code and connection of the temperature sensor is documented.

Instructions for reflow soldering.

Instructions for PDMS bioelectronix.


Lasercutter for PCB stencils

http://hardwarebreakout.com/2013/03/diy-laser-cutter-for-pcb-stencils

Library

Book Shelves

Bitwäscherei features a couple of bookshelves containing physical books

Online Services

Check out the online Library. Login is 'SGMK' combined with our beloved password...

Comic on soldering File:FullSolderComic EN.pdf PDF booklet. by Andie Nordgren link title

Office / Public Station

Storage

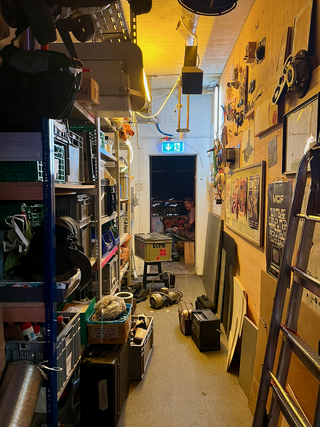

The shelves for personal storage boxes are located in the hallway towards the smoking area*

* Feature restricted MechArtLab Pro users

PowerPoint Arena

Bitwäscherei features a large area dedicated to holding presentations and conventions

Use at your own risk.

Chill out / Coffee

There's a lounge with a couple of sofas, as well as a kitchen / bar area

Maybe clean your mess up after you're done.

Refreshments

Various cold beverages are available in the two public fridges.

Please use the attached TWINT barcode to pay for your purchases.

Entertainment

Toilet DJ

Plays random WAV files from SD card upon poweron, with randomness being a bit wonky due to seeding from a floating analog pin.


Currently features about 100 tunes, feel free to add your own favourites! *Note the file format requirements below.

Amplifier inputs

The amplifier is located on top of the flushing tank, and has three inputs:

  • Tape ToiletDJ
  • Tuner Bluetooth dongle
  • CD unassigned

System specs

File conversion

To convert a sound file into the required format, you can use tools like ffmpeg as follows:

ffmpeg -i input.mp3 -ac 1 -ar 22050 -sample_fmt s16 output.wav

Retrieved from "http://wiki.sgmk-ssam.ch/index.php?title=MechArtLab_Infrastructure&oldid=14351"
